Quick start

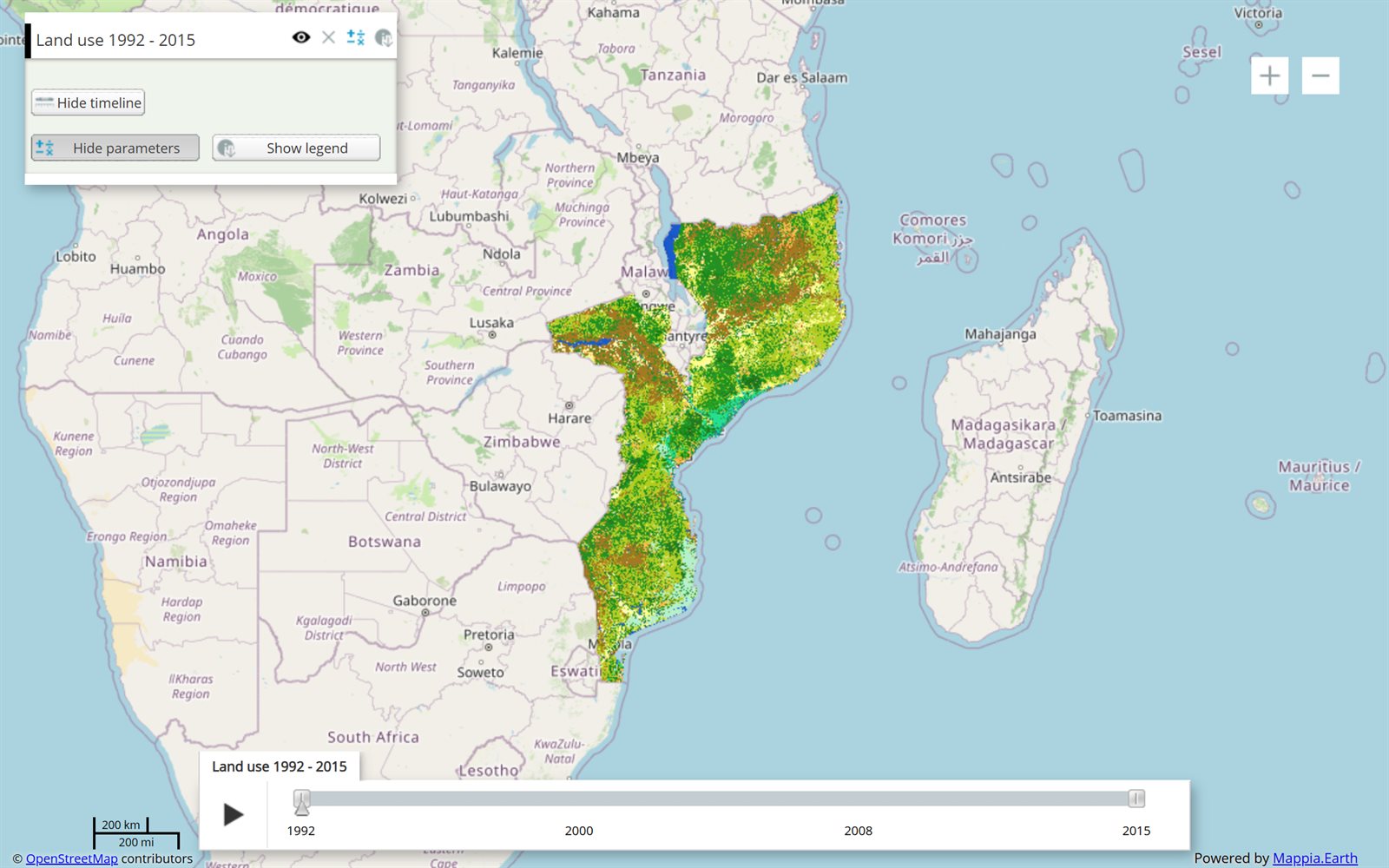

The example below, running in the Mappia calculator - click it to run it live. Full-size picture
- Run it
Click the picture: the map opens right here and runs the example. Nothing is saved, and nothing to install.
- Try it
- Press play in the panel at the bottom of the map: land use steps through 1992, 2000, 2008 and 2015.
- Drag the slider’s main handle to 2008: the map switches to the 2008 land use.
- Press Hide timeline in the layer panel: the bottom panel goes away. Press it again to bring it back.
- Make it yours
Copy the query, change it - the key parameters are below - and run it again in the playground, or paste it into the Mappia editor to save it as your map.
Key parameters
| Parameter | Example | What it does |
|---|---|---|
steps | [[1992, "land_use_1992_2015_1"], [2000, "land_use_1992_2015_9"], [2015, "land_use_1992_2015_24"]] | One [key, "style_name"] pair per step. The key labels the step; the style is what the map shows. |
nextStepInterval | 1500 | Milliseconds each step stays on screen while playing, counted after its map has loaded. Default 2100. |
id | land_use_years | Names the current step for your code, inputs.id["land_use_years"], and the timeline button, Ext.getCmp("land_use_years"). |
preloadTiles | true | Loads the tiles of the next steps in advance, for smoother playback. |
renderHidden | true | Starts with the bottom panel hidden. Users open it with the timeline button in the layer panel. |
onPlayToggle | onPlay | Function called before play or stop starts. It must return a truthy value; a falsy one cancels the click. |
Every parameter, with its type and default, is in the reference at the end of this page.
Complete example
The query 16 lines · runs as is
// Timeline: each step pairs a value with a style of the layer's map; playing the timeline
// switches the style, and the input holds the current step's value.
[
{
title: "Land use 1992 - 2015",
name: "CSR:land_use_1992_2015",
source: "calculate",
opacity: 0.85,
visibility: true,
paramsButtonConfig: [{ type: "query", pressed: true }],
descriptionHtml:
"{{timeline|id=land_use_years|nextStepInterval=1500" +
'|steps=[[1992, "land_use_1992_2015_1"], [2000, "land_use_1992_2015_9"], ' +
'[2008, "land_use_1992_2015_17"], [2015, "land_use_1992_2015_24"]]}}',
},
];Customize it
What you get
The tag renders a Show/Hide timeline button in the layer panel. The timeline itself is a panel at the bottom of the map, with a play button and a slider that has one stop per step. The panel only shows while its layer is visible. The map covers whatever area its maps cover: the example only shows Mozambique because that is where its land-use maps exist.
Use the current step in your code
inputs.id[ID] holds the key of the current step, as text ("1992", not 1992). Every step triggers a recalculation of the layer, after the step’s style is applied, so beforeCalc sees each new value:
beforeCalc: function (inputs) {
var year = parseInt(inputs.id["land_use_years"], 10); // "1992" -> 1992
ExtjsUtils.ALERTIFY.log("Showing " + year);
},
Inside expression, read the step by position (inputs[0] for the first input widget) and convert it too.
Switch maps, not only styles
A step can also change the map itself: give {style, name} instead of the style name, as in [["2010", {style: "s2010", name: "CSR:my_map_2010"}]].
Control it from code
Ext.getCmp(id) is the button; getTimeline() gives you the panel:
var timeline = Ext.getCmp("land_use_years").getTimeline();
timeline.updateMainThumbValue(2); // jump to the third step
if (!timeline.playing) timeline.startAnimationStep();
timeline.stopAnimation();
timeline.setSteps({ 2000: "land_use_1992_2015_9", 2015: "land_use_1992_2015_24" });
getValue() returns the current key, nextAnimationStep() advances one step, and setDesiredVisibility(false) hides the panel.
Pitfalls
- Each style in
stepsmust be one the map is published with: the map name without its namespace, plus_and an index (land_use_1992_2015_9). - Steps are stored by key. A repeated key keeps only its last style, and whole-number keys always play in ascending order.
onPlayTogglemust return a truthy value. A function that returns nothing cancels play.showTimelineButtonandtimelineConfigwritten on the layer do nothing. Configure the timeline with the tag’s own parameters.
